The LS Series offers a consistent stitching pitch and outstanding ability to sew sharp curves. This makes the machine ideal for the sewing of tubular articles.
With its larger needlebar stroke, larger lift of the presser foot, and newly adopted double-tension mechanism, the machine sews beautifully with thick threads (low count thread) and at higher thread tensions. This allows the machine to sew a broad range of heavy materials.
Compared with the elliptical feed, the rectangular feed helps reduce gathered stitches.
The ratio of alternate vertical movement remains unchanged even when the material thickness changes.

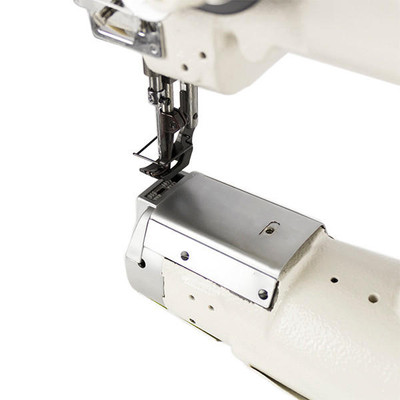

The slimmed-down throat plate easily responds to the sewing of small tubular articles with diameters as small as φ40mm.
This enhances the machine's ability to smoothly sew not only bags and shoes, but also small articles such as wallets.
The throat plate and feed dog are provided with a gauge that offers an excellent capability for the sewing of sharp curves. These gauges are especially useful for the sewing of curves of bags and leather cases.
The vertical stroke of the presser foot and walking foot (amount of alternating vertical movement) can be easily changed with the large dial mounted on the top of the machine head. The sewing speed is automatically regulated based on the vertical stroke setting. This ensures ideal sewing conditions at all times.
With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated.
The machine handles thread counts from #30 to #5.
Its highly rigid thread trimming mechanism cuts the thread without fail. The machine can be applied to a broad range of sewing processes, including the sewing of bags.
Since the needle thread-tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry is easily viewable. This substantially improves the operability of the machine.
Higher lift of the presser foot.
The high, 9mm to 16mm presser foot lift enables easy material handling.
Consistent seam quality.
With the adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism, and a unison feed mechanism, the machine can feed heavy materials powerfully and smoothly. Well tensed seams are consistently produced without pitch errors.
With its maximum stitch length of 6 mm, the machine can be applied to a broader range of uses.
The walking foot and presser foot’s alternating vertical movement can be set and changed with ease.
The vertical strokes of the presser foot and walking foot (their alternating vertical movement) can be easily changed using a large dial mounted on the top surface of the machine head.
In addition the sewing speed is automatically adjusted with the set value. With this feature, ideal sewing conditions are maintained at all times.
The machine is equipped with an instantaneous changeover device for alternating the vertical movement amount of the walking foot and presser foot, which demonstrates its capability for processes involving sewing products with a lot of multi-layered portions.
Safety clutch push button.
The machine is equipped as standard with a safety clutch for preventing hook breakage. Reset work can be done simply by pressing a button.
The machine comes with a dual-tension mechanism.
The 1-needle type machine has adopted a dual-tension mechanism, with which the machine can support high-tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light- to heavy-weight.
The shipment includes the following:
*Everything in the shipment is brand new, packed in sealed boxes and never been used before.
Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.
This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer
Only applies under normal sewing conditions as prescribed for the machine
Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)
This warranty does not cover improper use or abuse under heavy use of machines
This warranty does not cover flood, fire, or other acts of nature
If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.
If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.
If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.
Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.
