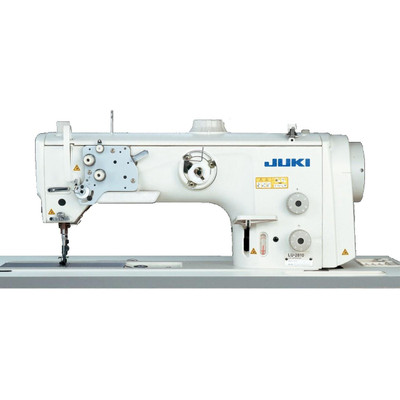

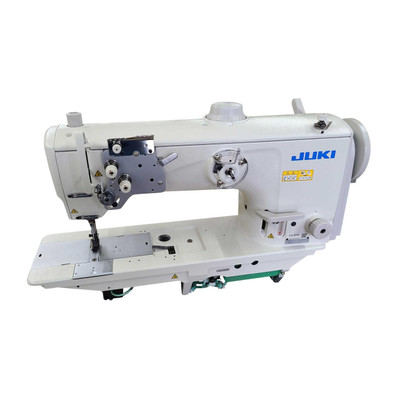

JUKI DU-1181N Single Needle Walking Foot Industrial Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $2,032.00
$1,565.00
Save $467.00 per unit
SKU:
DU-1181N
Condition:
New
Availability:
Ships in 1 to 5 Business Days
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

JUKI DU-1181N Single Needle Walking Foot Industrial Sewing Machine with Table and Servo Motor

Market Price: $2,032.00
$1,565.00
Save $467.00 per unit

JUKI DU-1181N Single Needle Walking Foot Industrial Sewing Machine with Table and Servo Motor

Market Price: $2,032.00
$1,565.00
Save $467.00 per unit

JUKI DU-1181N Single Needle, Straight Stitch, Walking Foot Industrial Sewing Machine Comes With Table, Legs, and Servo Motor

With its strong top and bottom feed mechanism, the machine insures the smooth feeding of hard-to-feed materials or multilayered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches. The automatic lubricating mechanism dramatically improves maintainability of the machine.

Higher lift of the presser foot

The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching.

The maximum stitch length is 9 mm

With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes.

The double-capacity hook is provided as standard

The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.

Automatic lubricating mechanism

A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.

The top feed mechanism employs a grease tank and oil wick lubrication mechanism.

The machine achieves low-vibration and low-noise

The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environment.

Excellent operability

  • The stitch pitch can be adjusted in both the normal and reverse directions.
  • The height and inclination of the feed dog can be adjusted.
  • The amount of the alternating vertical movement of the walking foot and presser foot is adjustable in a range from 2 to 5mm according to the height of a multi-layered section of material.
  • The horizontal feed cam, top and bottom feed cam and top feed cam can be adjusted after openning the rubber caps (three caps) on top of the machine head.

MACHINE SPECIFICATIONS:

  • Max. sewing speed:  2,000 stitches per minute
  • Max. stitch length:  9mm (forward/backward)
  • Needle bar stroke:  36.5mm
  • Lift of the presser foot by hand:  5.5mm
  • Lift of the presser foot by knee: 15mm
  • Thread take-up:  Link type
  • Alternating vertical movement: 2~5mm
  • Hook:  Horizontal-axis full-rotary double-capacity hook
  • Needle (at the time of delivery): DP×17 (#21) #14~#23*
  • Bobbins: Metal "M" Bobbin #18034
  • Thread:  #40~#8, B33~B92, Nm=90/3~30/3
  • Pitch changing method:  By dial
  • Knee-lifter mechanism:  Built on the machine head
  • Lubrication:  Automatic
  • Lubricating oil:  JUKI MACHINE OIL No.7 (equivalent to ISO VG7)
  • Distance from needle to machine arm:  261mm
  • Bed size:  477mm × 178mm
  • Weight of the machine head:  31kg

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
