JUKI DDL-8700H Heavy Material High-Speed Single Needle Straight Lockstitch Industrial Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $1,490.00
$1,147.00
Save $343.00 per unit
SKU:
DDL8700H
Condition:
New
Availability:
Ships in 1 to 3 Business Days
Shipping:
Bulk Pricing:
Quantity-Based Pricing
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

JUKI DDL-8700H Heavy Material High-Speed Single Needle Straight Lockstitch Industrial Sewing Machine with Table and Servo Motor

Market Price: $1,490.00
$1,147.00
Save $343.00 per unit

JUKI DDL-8700H Heavy Material High-Speed Single Needle Straight Lockstitch Industrial Sewing Machine with Table and Servo Motor

Market Price: $1,490.00
$1,147.00
Save $343.00 per unit

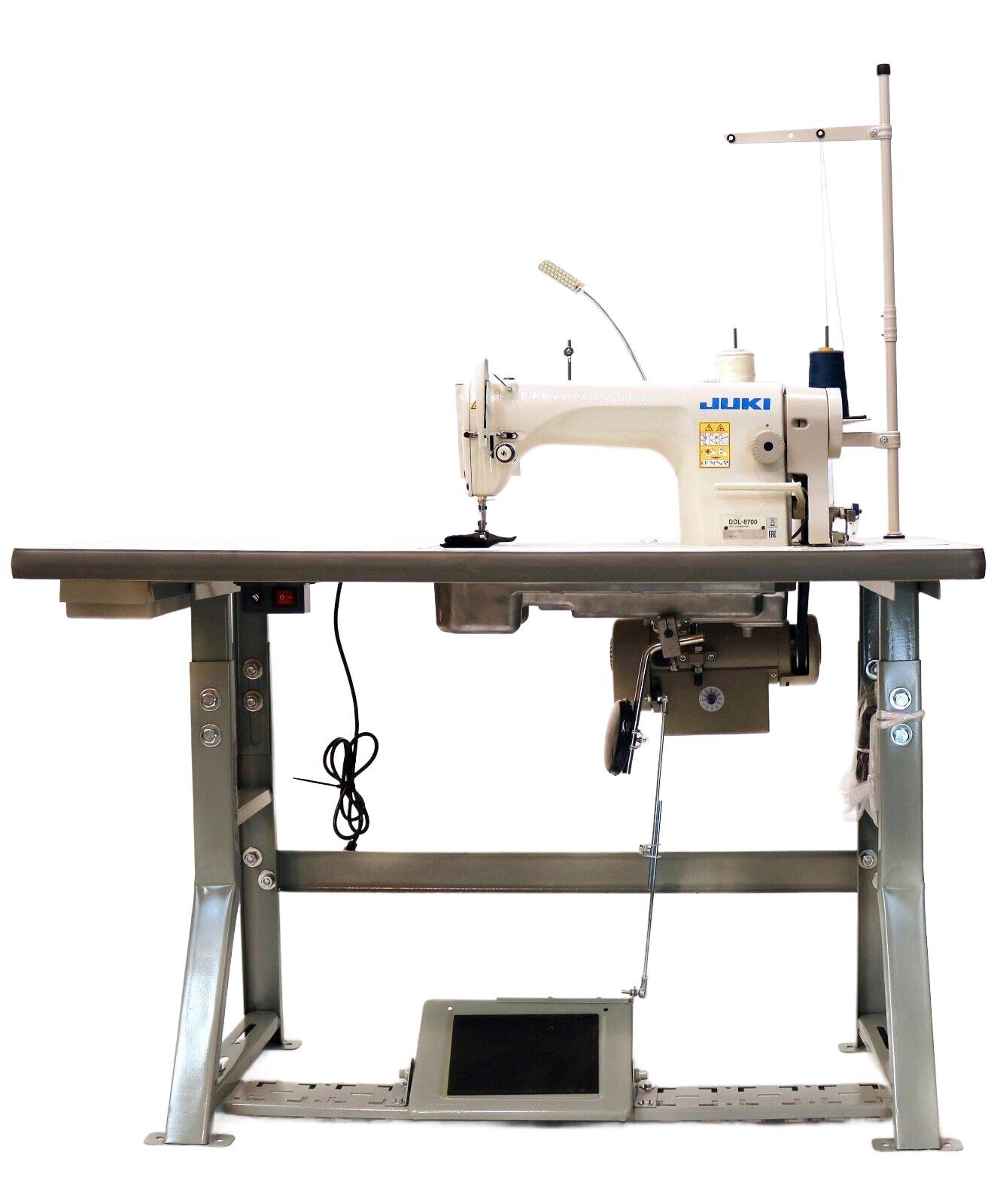

JUKI DDL-8700H Heavy Material High-Speed Single Needle Straight Lockstitch Industrial Sewing Machine Comes With Table, Legs, and Servo Motor

The JUKI DDL-8700H is the heavy-duty champion of JUKI’s 1-needle lockstitch lineup, engineered to tackle thicker fabrics with precision and power. Designed for industrial sewing professionals, this machine combines high-speed performance with robust construction, making it ideal for medium to heavy-weight materials like denim, canvas, and upholstery fabrics. With its enhanced features and legendary JUKI reliability, the DDL-8700H delivers consistent, professional-grade seams that elevate your production quality.

About the Juki DDL-8700H

The Juki DDL-8700H is designed to handle many types of lockstitch sewing for heavy-weight fabrics, such as denim, uniforms, and other thick materials.

With a maximum sewing speed of 4,000 sti/min and a maximum stitch length of 5mm, the DDL-8700H can handle all the straight lockstitching you need. It has a working space of 10.5″ from the needle to the machine arm to handle a larger amount of fabric. The throat plate has marker grooves with different seam widths for easy reference. Need to sew something even heavier? The throat plate and feed dogs can be exchanged for options specifically designed for thicker materials.

Bobbins wind quickly with the built-in winder that sits on the right side of the head. Simply thread the bobbin, wind it a little, put it onto the spindle, push it in place, and touch the foot pedal for a fast refill.

The LED light means you’ll have an easier time seeing what you’re sewing.

This industrial machine also has low vibration and high responsiveness that consistently produces the best seaming.

DDL-8700H: Timing is for needle sizes #16–#22. Uses the DB×1 needle system. Comes with heavier feed dogs, a heavier throat plate, a larger presser foot, and a higher needle stroke. The H version is designed to sew denim and materials that require using thicker thread up to size 92 (TEX 90).

Machine Head Design That Was Developed in Pursuit of Beauty

The optimum-balance and highly rigid machine head were created using the latest 3D-CAD design technology. Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material.

The machine inherits the desirable features, such as high-speed stitching performance of 4,000 sti/min, extreme stitching performance, ease of operation, and reliability, from the highly evaluated previous JUKI lockstitch machines. (DDL-8700: 5,500 sti/min.)

Sewing Mechanism That Demonstrates Outstanding Responsiveness to Materials to Be Sewn

By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of heavy-weight materials and produces beautiful seams of consistent quality.

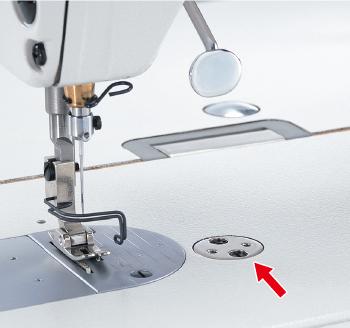

The Machine Provided as Standard With Attachment Mounting Seats

The machine is provided as standard with extra attachment mounting seats for attachment of new auxiliary parts in the future. The extremely high durability of the seats ensures an extended service with frequent replacement of attachments.

The Machine Has Easy-to-Operate Functions to Achieve Improved Operability

By providing a presser foot with a higher lift (13mm), a light-touch stitch dial, a throat plate with marker grooves that can be used as guide for seam allowance, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.

JUKI DDL-8700H Machine Features

  • The JUKI DDL-8700H’s low tension sewing mechanism flexibly responds to a wide variety of heavy-weight fabrics and produces a beautiful seam with uniform quality.
  • Improved maintainability is guaranteed on the upgraded machine head.
  • Increase productivity with the presser foot with a higher lift, a light-touch stitch dial, and throat plate with marker grooves to assist with seam allowance precision.

MACHINE SPECIFICATIONS:

  • Application: Heavy-weight
  • Max. sewing speed: 4,000 Stitches per Minute
  • Max. stitch length: 5mm
  • Needle bar stroke: 35mm
  • Lift of the presser foot by hand: 5.5mm
  • Lift of the presser foot: 13mm
  • Needle (at the time of delivery): DB×1 (#21) #19~#23, 134 (Nm130)
  • Bobbins: Item # 229-32909 or Aluminum Bobbins Item # 229-64001
  • Feed dog: 3-row
  • Hook: Automatic-lubricating full-rotary hook
  • Lubrication: Automatic
  • Lubricating oil: JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
  • Weight of the machine head: 28kg

The Advantages of a Servo Motor

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
