The standard model of JUKI 1-needle lockstitch machines with an automatic thread trimmer.
The DDL-8700-7 is provided with the "new model control box" and the "new model compact servomotor," thereby substantially saving energy.
| Model | DDL-8700-7 | DDL-8700A-7 | DDL-8700H-7 |
|---|---|---|---|
| Application | Medium-weight | Light-weight | Heavy-weight |
| Max. sewing speed | 5,000sti/min | 4,000sti/min | |
| Max. stitch length | 4mm | 4mm | 5mm |
| Lift of the presser foot | By hand: 5.5mm By knee: 13mm |
By hand: 4mm By knee: 9mm |
By hand: 5.5mm By knee: 13mm |
| Needle | DB×1 (#14) #9～#18 134 (Nm90) |
DAx1 (#9) #9～#11 134 (Nm65) |
DB×1 (#21) #19～#23 134 (Nm130) |
| Feed dog | 4-row | ||
| Hook | Automatic-lubricating full-rotary hook | ||
| Lubrication | Automatic | ||
| Lubricating oil | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | ||
The new model control box SC-920C has been newly developed. The control box is resistant to voltage fluctuations, noise and vibration.
The new model control box is provided with an energy-saving mode for the first time in a control box for sewing machines. It reduces power consumption during standby time when the motor is not rotating by approximately 25% (in comparison with the SC-910N).
In addition, the current DDL-8700-7 is lavished with the latest energy-saving technologies, including the adoption of the latest compact servomotor M92, to be more friendly to the environment, as well as to provide the power reducing effect and to increase productivity.
The production support function actually consists of three different functions (six different modes), which are the output control function, operation measuring function, and bobbin counter function.
The operator is notified that the bobbin needs to be replaced before the bobbin thread runs out.
The CP-180A is recommended for sewing difficult-to-sew materials, hard-to-sew parts or for processes in which lots of setup changes are required. With the CP-180A, in addition to the functions of the CP-18A, the speed of stitch adjustment, ON/OFF of the automatic thread trimmer, automatic reverse stitching, double-reverse stitching, constant-dimension sewing, rectangular stitching and multi-layer stitching can be changed over with a finger-tip control, thereby substantially reducing the length of time required for setup changing.

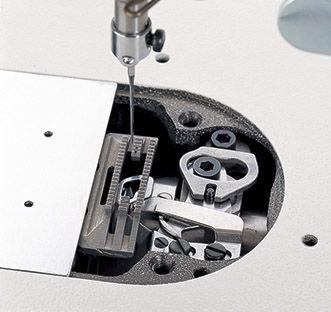

The DDL-8700-7 machine comes with a thread trimming mechanism that performs speedy and reliable thread trimming to achieve highly efficient sewing work.
By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.
The optimum-balance and highly rigid machine head were created using the latest 3D-CAD design technology. Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material. The machine inherits the desirable features, such as high-speed stitching performance 5,000sti/min, extreme stitching performance, ease of operation, and reliability, from the highly evaluated previous JUKI lockstitch machines
The DDL-8700-7 machine is provided as standard with extra attachment mounting seats for attachment of new auxiliary parts in the future. The extremely high durability of the seats ensures an extended service with frequent replacement of attachments.

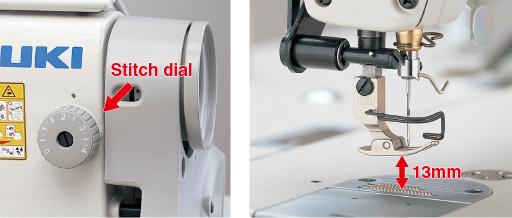

By providing a presser foot with a higher lift (13mm), a light-touch stitch dial, a throat plate with marker grooves that can be used as guide for seam allowance, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.
Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.
This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer
Only applies under normal sewing conditions as prescribed for the machine
Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)
This warranty does not cover improper use or abuse under heavy use of machines
This warranty does not cover flood, fire, or other acts of nature
If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.
If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.
If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.
Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.
DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.
ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
