Jack T2230-DII Fully Automatic 300mm x 200mm Programmable Pattern Tacker with Complete Tabling

No reviews yet Write a Review
Market Price: $17,450.00
$15,850.00
Save $1,600.00 per unit
SKU:
JK-T2230-DII
Condition:
New
Availability:
In stock. Ships in 1 to 3 business days.
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Jack T2230-DII Fully Automatic 300mm x 200mm Programmable Pattern Tacker with Complete Tabling

Market Price: $17,450.00
$15,850.00
Save $1,600.00 per unit

Jack T2230-DII Fully Automatic 300mm x 200mm Programmable Pattern Tacker with Complete Tabling

Market Price: $17,450.00
$15,850.00
Save $1,600.00 per unit

Jack T2230-DII Automatic Touch Screen 300mm x 200mm Programmable Pattern Tacker with CompleteTabling and Built-in Direct Drive Motor

Automatic Pattern Sewing Machine - Sewing Area 220mm X 100mm

The machine is used for multiple sewing a repeatable pattern, such as sewing on labels, fastenings or decorative stitching. Equipped with a servo motor built into the machine head (direct drive system) and step motors – servo motor and a new solution of the transport mechanism, increase the quality of sewn patterns, smoother machine work, high accuracy and shorten the start and finish time of the sewing process.

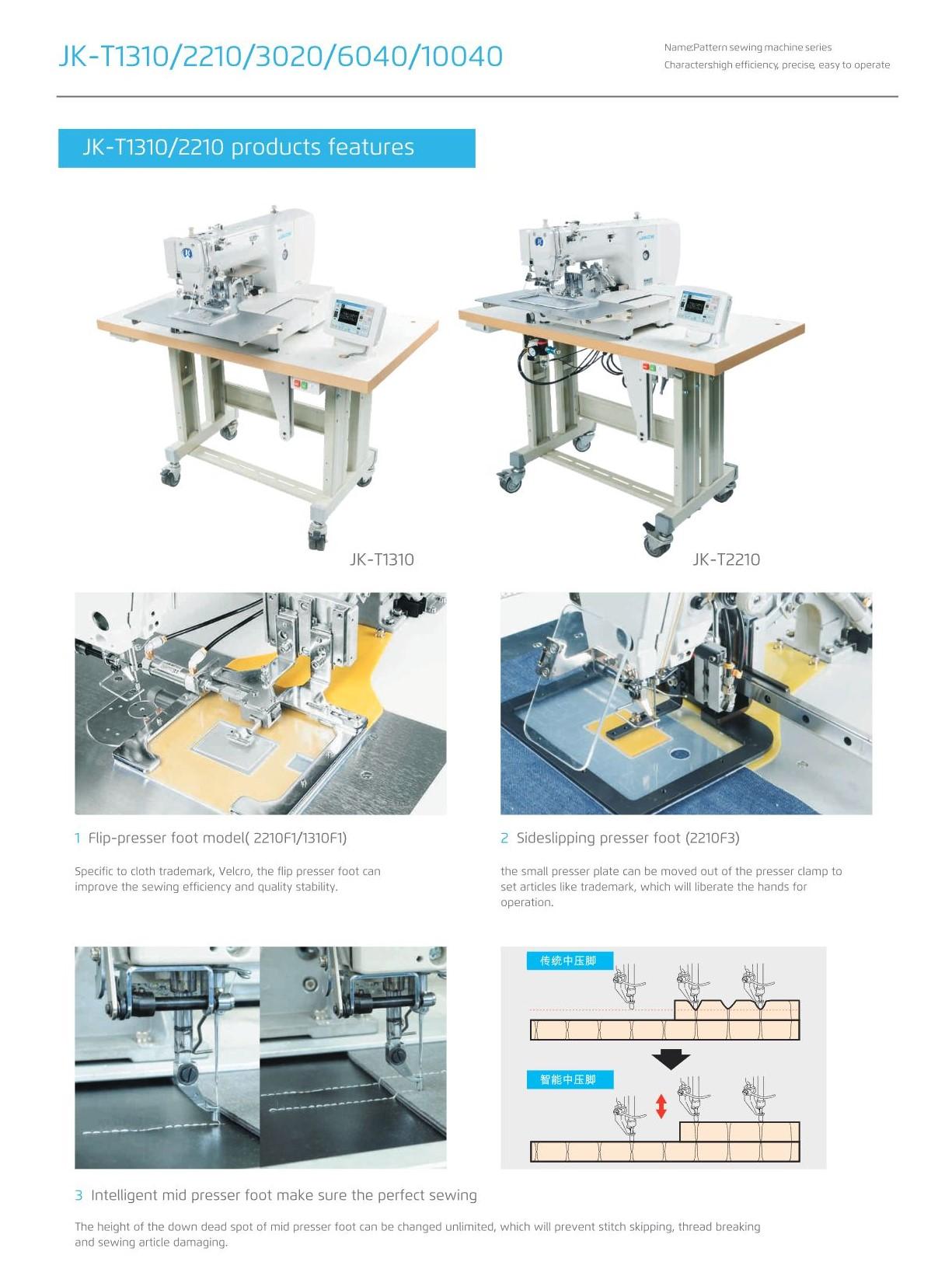

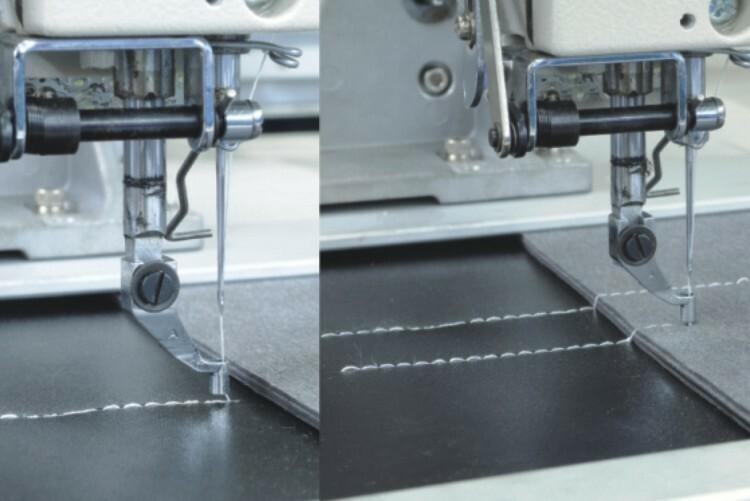

Intelligent Mid Presser Foot

The foot lift can be changed to any height, in order to avoid skipped stitches, thread breakage and damage to fabrics

Industry 4.0 (Optional)

Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines

MACHINE FEATURES:

  • Up to 999 patterns could be imported in this machine through USB directly. It can be well applied to sewing for the special parts of leatherwear, leather product bags and jeans.
  • Plain and clear sewing patterns and detailed parameter makes it much more efficient for edit operation.
  • Slot the cylindrical pin card to the fixture and step a pedal switch, a template changing will be finished quickly and accurately.
  • High-power motor drive enables the bar tack with strong penetrating power and even super-thick material could be sewed smoothly.

MACHINE SPECIFICATIONS:

  • Model: Jack JK-T2230
  • Needle: DPx17 11-25#
  • Sewing area: (mm) 300X200
  • Presser foot lift: (mm) 22
  • Max Speed: (S.p.m) 2700
  • Volume: (mm) 1200x840x1320
  • Weight: (kg) 136/186

DOWNLOADS:

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
