Jack 2284B-4E Direct Drive 3 Step Zig-Zag Bottom Feed Fully Automatic Sewing Machine with Complete Tabling

No reviews yet Write a Review
Market Price: $5,382.00
$4,592.00
Save $790.00 per unit
SKU:
JK-2284B-4E
Condition:
New
Availability:
In stock. Ships in 1 to 3 business days.
Shipping:
Bulk Pricing:
Quantity-Based Pricing
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Jack 2284B-4E Direct Drive 3 Step Zig-Zag Bottom Feed Fully Automatic Sewing Machine with Complete Tabling

Market Price: $5,382.00
$4,592.00
Save $790.00 per unit

Jack 2284B-4E Direct Drive 3 Step Zig-Zag Bottom Feed Fully Automatic Sewing Machine with Complete Tabling

Market Price: $5,382.00
$4,592.00
Save $790.00 per unit

Jack 2284B-4E Single Needle Drop Feed 3 Step Zig-Zag Fully Automatic Lockstitch Industrial Sewing Machine Comes With Table, Legs, and Built-In Direct Drive Motor

Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher, Automatic Functions

Three Step Zig Zag Stitch

3-stiches Zig Zag available with this pattern.

Footlifter Bartack Thread Trimmer E Thread Wiper

This machine comes fully packed with the latest technology and automatic features for optimum productivity.

Computerized

Through the panel you can adjust the various advanced functions of the machine.

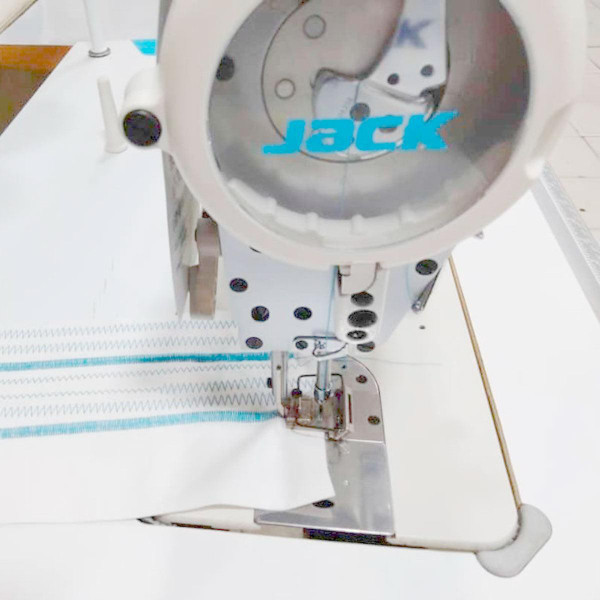

8mm Zig Zag

The JK-2284 machine is suitable for sewing: women's underwear, jackets, gloves, elastic reinforcements and other products that require zig-zag stitching up to 8mm wide or three stitch.

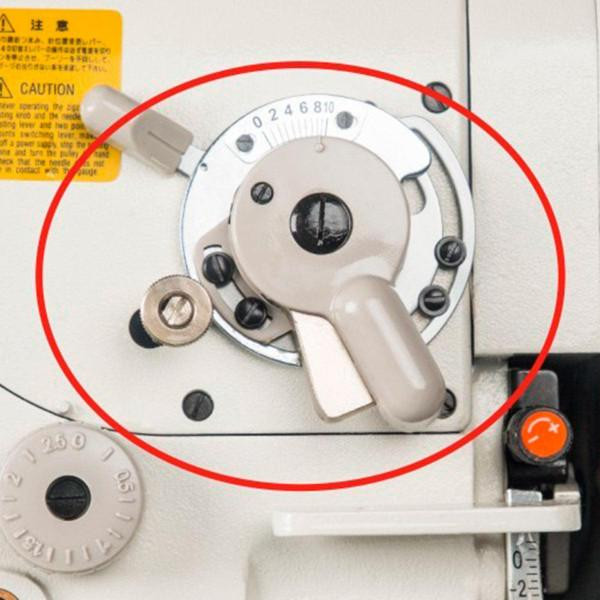

Easy Zig Zag Width Adjustment

With a knob it is possible to adjust the oscillation of the needle bar according to the user's needs.

Elastic Foot

The seams made on thin materials and stretch fabrics remain particularly stable.

MACHINE APPLICATIONS:

  • Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.
  • Federal stitch 304

MACHINE FEATURES:

  • Horizontal axis transverse rotary hook
  • Maximum width of zig-zag: 3/8" (9.5mm)
  • Straight stitcher when zig-zag is set to 'O' mm
  • Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
  • Locking zig-zag width regulator
  • Reverse stitching
  • Electric Foot Lifting
  • Automatic Thread Cutting
  • Automatic Bartacking
  • Automatic Thread Wiper

MACHINE SPECIFICATIONS:

  • Number of Needles:  1 (Single)
  • Feeding Mechanism:  Drop Feed
  • Workspace:  Standard Workspace
  • Standard or Full Function:  Full Auto Functions
  • Speed, Max (S.P.M.):  Zig-Zag 4500 Straight 3200
  • Stitch Length:  5 s.p.i. (5mm)
  • Clearance Under Presser Foot: 10mm
  • Work Space:  10" (258mm)
  • Needle:  DPx5 Sizes from #10 to #14
  • Needle Bar Stroke:  1 11/32" (34mm)
  • Zig-Zag Stitch Width (Stitch Pitch):  5/16" (8mm)

DOWNLOADS:

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.
