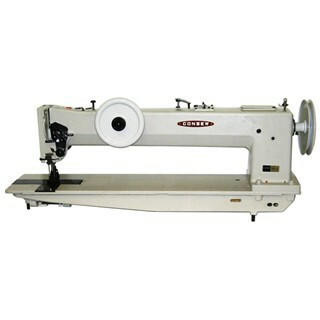

Consew 744R30 Extra Heavy Duty Single Needle Compound Walking Foot 30" Long Arm Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $12,117.00
$9,330.00
Save $2,787.00 per unit
SKU:
744R30
Condition:
New
Shipping:
Bulk Pricing:
Quantity-Based Pricing
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 744R30 Extra Heavy Duty Single Needle Compound Walking Foot 30" Long Arm Sewing Machine with Table and Servo Motor

Market Price: $12,117.00
$9,330.00
Save $2,787.00 per unit

Consew 744R30 Extra Heavy Duty Single Needle Compound Walking Foot 30" Long Arm Sewing Machine with Table and Servo Motor

Market Price: $12,117.00
$9,330.00
Save $2,787.00 per unit

Consew 744R30 Extra Heavy Duty Single Needle Triple Feed Walking Foot 30" Long Arm Sewing Machine Comes With Table, Legs, and Servo Motor

Extra Heavy Duty, Single Needle (745R30 is 2-needle), Drop Feed, Needle Feed (compound Feed),  Alternating Presser Feet Lockstitch Machine

With: Extra Large Bobbins And Vertical Axis Hooks, Centralized Arm Lubrication, Reservoir-oiled Hooks With Micrometric Control Valve, Presser Foot Locking Lever, Push Button Stitch Regulator, Reverse Feed, Safety Clutch, Built-in Bobbin Winder, Front Handwheel, Puller (Optional), One Piece Upper Casting, Easy To Convert Between 1 And 2 Needle

Available in model 744R30P with puller feed and model 744R30-AL(N) with Auto Trimming, Backtack, and Reverse.

Consew 744R30 Series BrochureConsew 744R Series Brochure

MACHINE APPLICATION:

  • Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
  • Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.
  • Suitable for stitching double seams and lap seaming.

MACHINE FEATURES:

  • Compound feed, walking foot mechanism insures positive and even feeding of the material.
  • Safety clutch protects the hooks from being damaged in case of accidental strain
  • Reverse feed operated by foot pedal
  • Centralized arm lubrication
  • Reservoir-oiled hooks with micrometric control valve
  • Presser foot locking lever
  • Built-in bobbin winder
  • Push button stitch regulator
  • Extra heavy duty top shaft with four ball bearings for support
  • Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes
  • High lift
  • Front handwheel (on 30" arm) allows for easy positioning of the needle(s)
  • 745RP is available with optional factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.

MACHINE SPECIFICATIONS:

  • Number of Needles: 1 (Single)
  • Feeding Mechanism: Walking Foot
  • Workspace: Long Arm
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 1500
  • Clearance Under Presser Foot: 25/32" (20mm)
  • Stitch Length: 25/64" (10mm)
  • Arm Length: 30"
  • Needle: 7x3 (DYx3)
  • Bobbin: 70141
  • Bed Size: 33 5/16" x 9 1/16" (846mm x 230mm)
  • Stitch Type: 301
  • Hook: 70140

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
