Consew 745R-30P Puller Feed Extra Heavy Duty Double Needle Compound Walking Foot 30" Long Arm Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $13,784.00
$10,614.00
Save $3,170.00 per unit
SKU:
745R-30P
Condition:
New
Shipping:
Bulk Pricing:
Quantity-Based Pricing
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 745R-30P Puller Feed Extra Heavy Duty Double Needle Compound Walking Foot 30" Long Arm Sewing Machine with Table and Servo Motor

Market Price: $13,784.00
$10,614.00
Save $3,170.00 per unit

Consew 745R-30P Puller Feed Extra Heavy Duty Double Needle Compound Walking Foot 30" Long Arm Sewing Machine with Table and Servo Motor

Market Price: $13,784.00
$10,614.00
Save $3,170.00 per unit

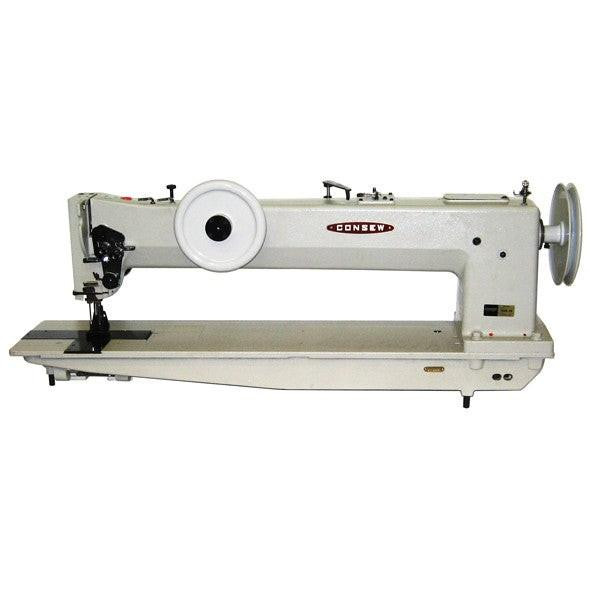

Consew 745R-30P Puller Feed Extra Heavy Duty Double Needle Triple Feed Walking Foot 30" Long Arm Sewing Machine Comes With Table, Legs, and Servo Motor

Extra Heavy Duty, Double Needle, Drop Feed, Needle Feed (compound Feed),  Alternating Presser Feet Lockstitch Machine

With: Extra Large Bobbins And Vertical Axis Hooks, Centralized Arm Lubrication, Reservoir-oiled Hooks With Micrometric Control Valve, Presser Foot Locking Lever, Push Button Stitch Regulator, Reverse Feed, Safety Clutch, Built-in Bobbin Winder, Front Handwheel, Puller (Optional), One Piece Upper Casting, Easy To Convert Between 1 And 2 Needle. 744R30 is single needle

Available in model 745R30P with puller feed and model 745R30-AL(N) with Auto Trimming, Backtack, and Reverse.

Consew 745R30 Series BrochureConsew 745R Series Brochure

MACHINE APPLICATION:

  • Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
  • Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.
  • Suitable for stitching double seams and lap seaming.

MACHINE FEATURES:

  • Compound feed, walking foot mechanism insures positive and even feeding of the material.
  • Safety clutch protects the hooks from being damaged in case of accidental strain
  • Reverse feed operated by foot pedal
  • Centralized arm lubrication
  • Reservoir-oiled hooks with micrometric control valve
  • Presser foot locking lever
  • Built-in bobbin winder
  • Push button stitch regulator
  • Extra heavy duty top shaft with four ball bearings for support
  • Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes
  • High lift
  • Front handwheel (on 30" arm) allows for easy positioning of the needle(s)
  • 745RP is available with optional factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.

MACHINE SPECIFICATIONS:

  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Walking Foot
  • Workspace: Long Arm
  • Standard or Full Function: Standard Functions
  • Speed, Max (S.P.M.): 1500
  • Clearance Under Presser Foot: 25/32" (20mm)
  • Stitch Length: 25/64" (10mm)
  • Arm Length: 30"
  • Needle: 7x3 (DYx3)
  • Bobbin: 70141
  • Bed Size: 33 5/16" x 9 1/16" (846mm x 230mm)
  • Stitch Type: 301
  • Hook: 70140

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
