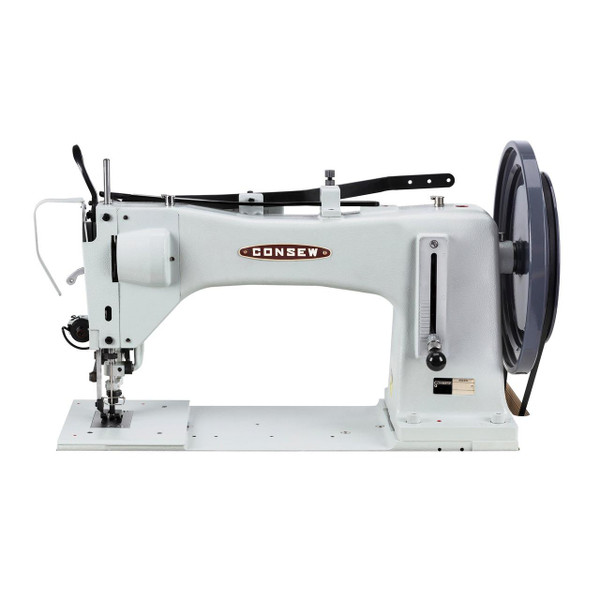

Consew 733R-6 Extra Heavy Duty Shuttle Hook Single Needle Walking Foot Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $11,190.00
$8,616.00
Save $2,574.00 per unit
SKU:
733R-6
Condition:
New
Availability:
In stock. Ships in 3 business days.
Shipping:
Bulk Pricing:
Quantity-Based Pricing
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 733R-6 Extra Heavy Duty Shuttle Hook Single Needle Walking Foot Sewing Machine with Table and Servo Motor

Market Price: $11,190.00
$8,616.00
Save $2,574.00 per unit

Consew 733R-6 Extra Heavy Duty Shuttle Hook Single Needle Walking Foot Sewing Machine with Table and Servo Motor

Market Price: $11,190.00
$8,616.00
Save $2,574.00 per unit

Consew 733R-6 Extra Heavy Duty (Shuttle Hook) Single Needle Drop Feed Alternating Presser Feet Lockstitch Industrial Sewing Machine Comes With Table, Legs, and Servo Motor

With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift - (1-1/4" / 32mm), Two Row Feeder, Reverse Feed

Consew 733R-6 BrochureConsew 733R-6 Brochure

MACHINE APPLICATIONS:

  • For stitching extra heavy-weight materials
  • Designed for such operations and products as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding

MACHINE FEATURES:

  • Synchronized upper and lower feeding mechanism assures uniform stitching
  • Alternating presser feet
  • Steel insert for take-up hinge
  • Reverse stitching - hand or foot operated
  • Stitch regulator - hand or foot operated​_
  • Presser foot lift - hand or foot operated
  • 1-1/4 inch presser foot lift
  • Two row feeder
  • Two stitches to the inch
  • Stitches per minute - 550
  • Extra large, long-beak oscillating shuttle, hook and bobbin
  • Belt guard

MACHINE SPECIFICATIONS:

  • Number of Needles:  1 (Single)
  • Feeding Mechanism:  Walking Foot
  • Workspace:  Standard Workspace
  • Standard or Full Function:  Standard Functions
  • Speed, Max (S.P.M.):  550
  • Clearence Under Presser Foot:  1 1/4" (32mm)
  • Stitch Length:  2 s.p.i. (13mm)
  • Hook Size:  Large
  • Work Space:  16 1/4" (413mm)
  • Needle:  1000 or 1000H
  • Bobbin:  Pre-Wound 41
  • Bed Size:  10" x 26 1/4" (258mm x 665mm)
  • Stitch Type:  301
  • Gross Weight:  348 lbs. (158 kgs)
  • Weight:  231 lbs. (105kg)
  • Needle Bar Stroke:  2 3/32" (53mm)
  • Hook:  35224

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
