Consew 2206RB-14-7-DD Single Needle Direct Drive Compound Walking Foot Sewing Machine with Complete Tabling

1 reviews Write a Review
Market Price: $2,948.00
$2,370.00
Save $578.00 per unit
SKU:
2206RB-14-7-DD
Condition:
New
Shipping:
Bulk Pricing:
Quantity-Based Pricing
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 2206RB-14-7-DD Single Needle Direct Drive Compound Walking Foot Sewing Machine with Complete Tabling

Market Price: $2,948.00
$2,370.00
Save $578.00 per unit

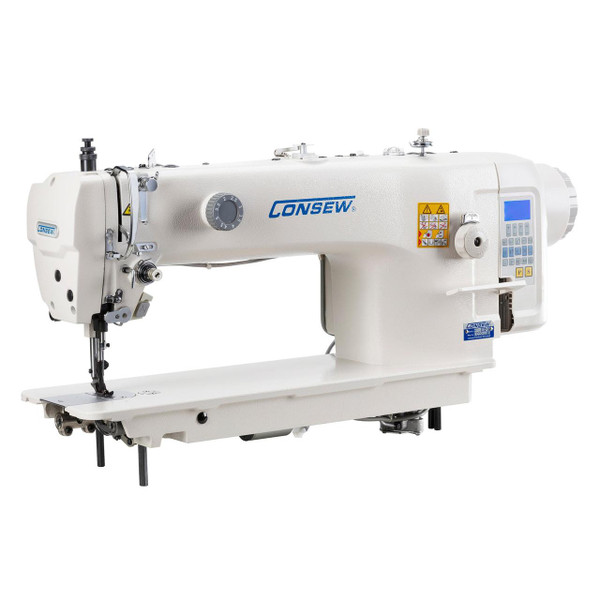

Consew 2206RB-14-7-DD Single Needle Direct Drive Compound Walking Foot Sewing Machine with Complete Tabling

Market Price: $2,948.00
$2,370.00
Save $578.00 per unit

Consew 2206RB-14-7-DD Direct Drive Heavy Duty Single Needle Triple Feed, Walking Foot Industrial Sewing Machine Comes With Table and Legs

Featuring: Fully Automatic Functions with Display, Automatic Electric Foot Lift, Large Workspace, 14” Horizontal (355 mm) x 5.9” Vertical (150 mm), Automatic Lubrication System, Manual & Automatic Reverse With Knuckle Switch, Large Bobbin And Horizontal Axis Hook (side Load), 3 S.p.i.(8mm) Stitch Length, Locking Stitch Regulator, Standard Presser Feet Fittings.

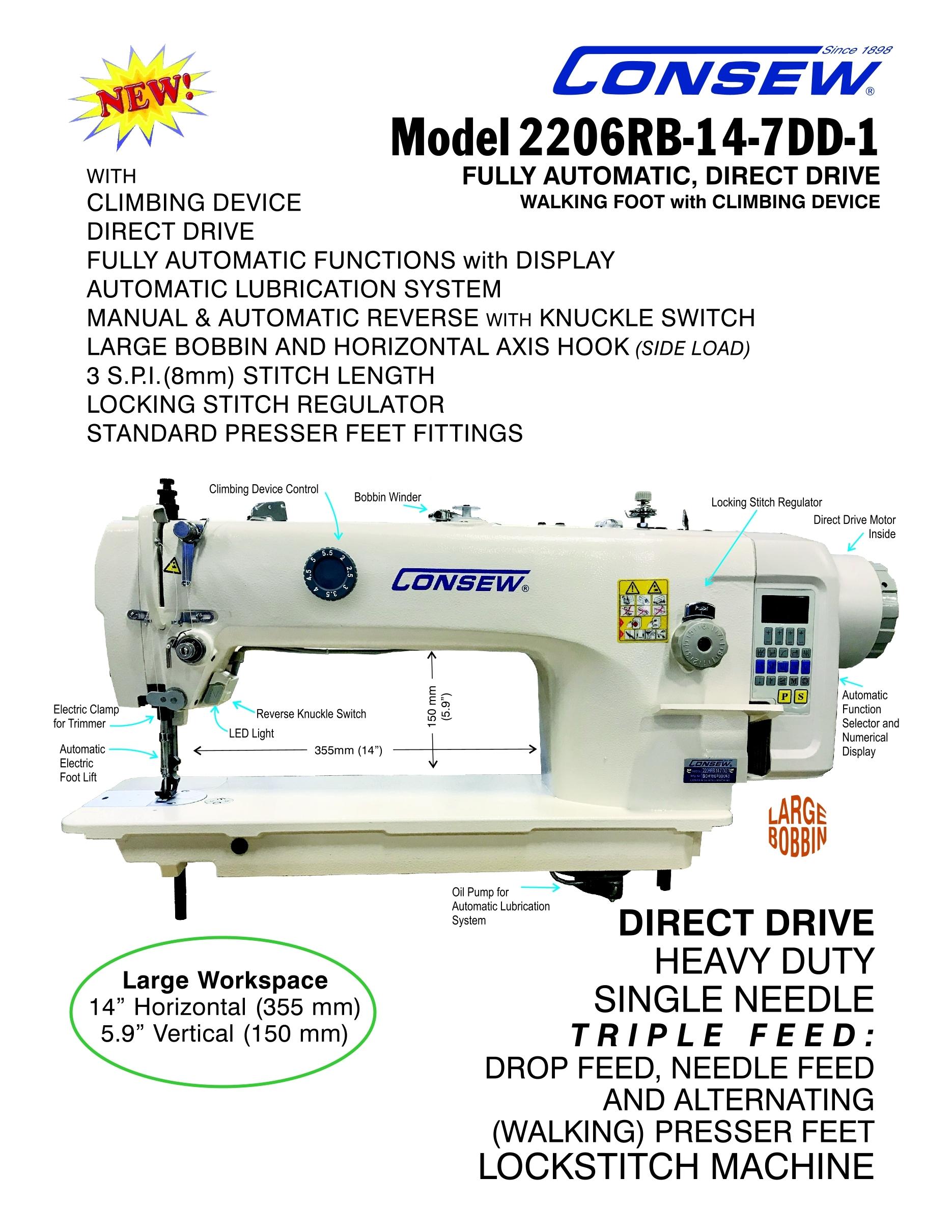

Consew 2206RB-14-7DD BrochureConsew 2206RB-14-7DD Brochure

MACHINE APPLICATIONS:

  • For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
  • Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, handbags, luggage, sports and camping equipment, outdoor clothing, footwear, orthopedic appliances, ballistic armor, parachute containers, etc.

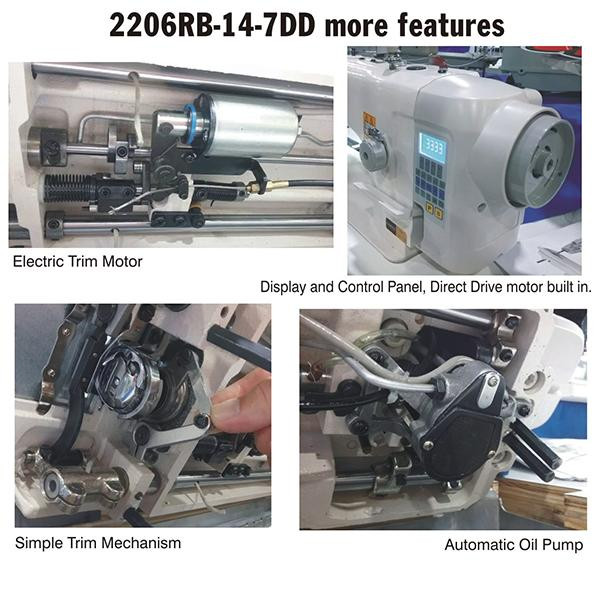

MACHINE FEATURES:

  • Direct Drive Motor (no belt connection required)
  • Fully automatic functions including automatic electric foot lift
  • Automatic lubrication system
  • Large bobbin and horizontal axis hook (side load)
  • Compound feed, walking foot with alternating presser feet
  • Built-in adjustment for changing step height between inside and outside presser feet
  • New: Presser feet connecting rod which allows for presser feet to alternate more efficiently
  • New: Top thread electric clamping system for trimming
  • Built-in bobbin winder
  • Locking stitch regulator
  • Safety-type handwheel
  • Stitch length indicator on outside of machine
  • All sizes of cording feet available
  • Standard presser feet fittings
  • Standard attachments easily installed

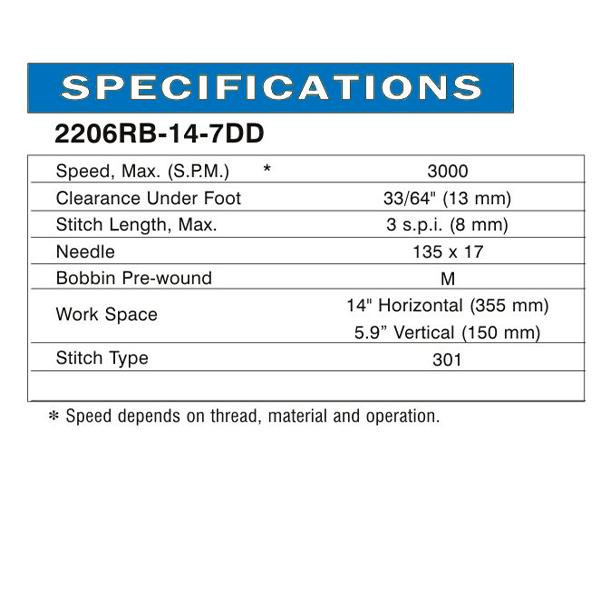

MACHINE SPECIFICATIONS:

  • Maximum Rated Speed: (S.P.M.) 3000
  • Clearance Under Presser Foot: 33/64" (13 mm)
  • Maximum Stitch Length: 3 S.P.I. (8 mm)
  • Workspace: 14" Horizontal (355 mm) x 5.9” Vertical (150 mm)
  • Needle System: 135 x 17
  • Bobbin: Pre-Wound M Part #15041
  • Stitch Type: 301
  • Needle Bar Stroke: 1-5/16" (33 mm)
  • Hook: Part #15040

NEED PARTS FOR THIS MACHINE?

WHAT COMES WITH THE COMPLETE UNIT SHIPMENT?

  • Machine Head factory-sealed box
  • Stand/Legs
  • Table Top
  • Instruction Manual, Parts Book, and Documentation

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.
