Consew 199R Series Single Needle Drop Feed Zig-Zag Sewing Machine with Table and Servo Motor

No reviews yet Write a Review
Market Price: $3,257.00
$2,508.00
Save $749.00 per unit
SKU:
199R-1A-1
Condition:
New
Shipping:
Bulk Pricing:
Quantity-Based Pricing
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Consew 199R Series Single Needle Drop Feed Zig-Zag Sewing Machine with Table and Servo Motor

Market Price: $3,257.00
$2,508.00
Save $749.00 per unit

Consew 199R Series Single Needle Drop Feed Zig-Zag Sewing Machine with Table and Servo Motor

Market Price: $3,257.00
$2,508.00
Save $749.00 per unit

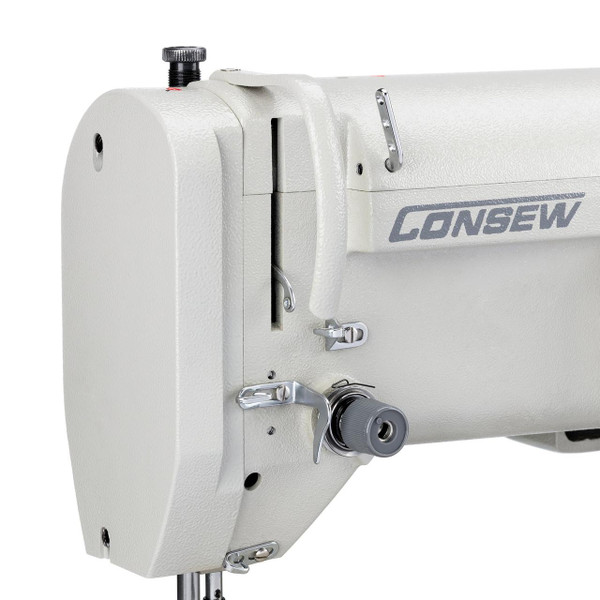

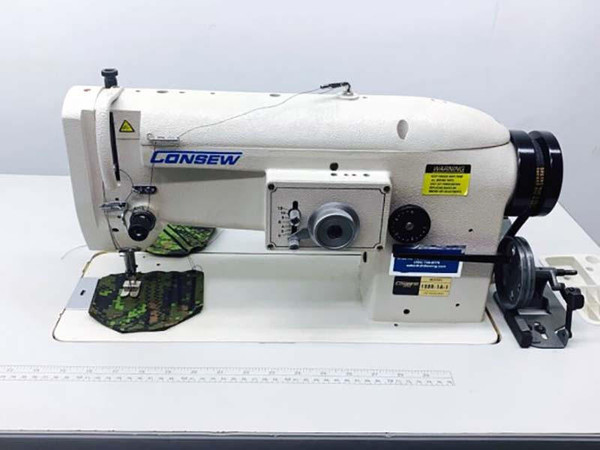

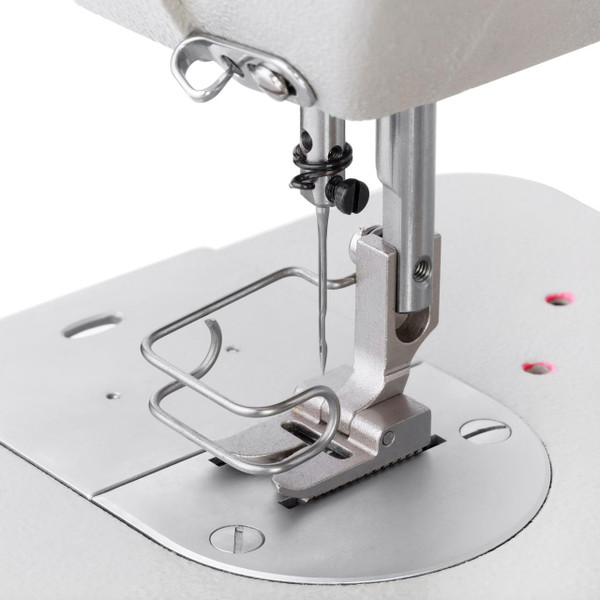

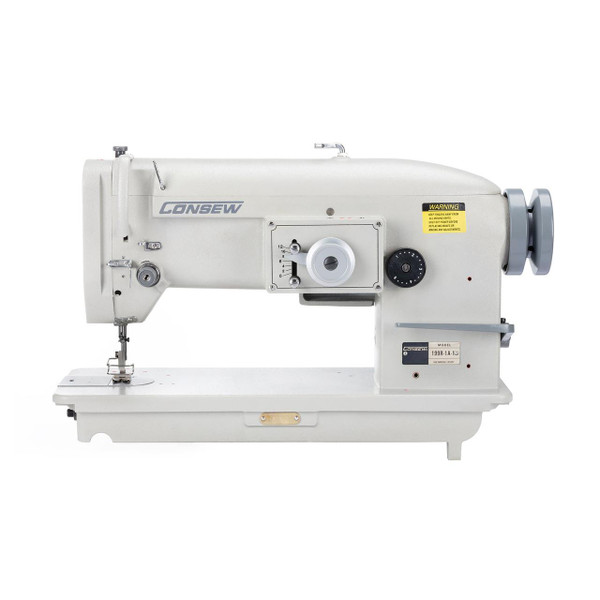

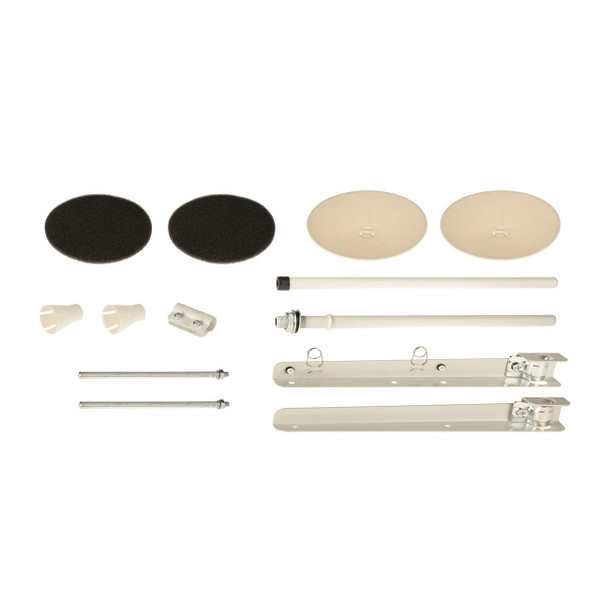

Consew 199R Series Single Needle Drop Feed Zig-Zag Lockstitch Industrial Sewing Machine Comes With Table Legs Servo Motor

Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher

*Also available in Consew 199RB Series with Large Bobbin

Consew 199R Series BrochureConsew 199R Series Brochure

MACHINE APPLICATIONS:

  • Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.
  • Federal stitch 304

MACHINE FEATURES:

  • Horizontal axis transverse rotary hook
  • Maximum width of zig-zag: 3/8" (9.5mm)
  • Straight stitcher when zig-zag is set to 'O' mm
  • Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
  • Locking zig-zag width regulator
  • Reverse stitching
  • Optional: Interchangeable between 1A, 2A & 3A stitches; Additional parts required (not included)

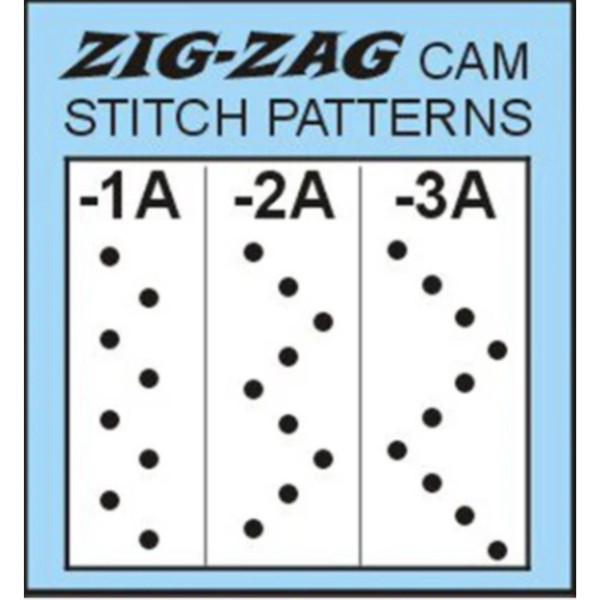

  • VERSIONS (see picture of stitch patterns):
    199R-1A-1 • 1 Stitch Zig-Zag (304)
    199R-2A-1 • 2 Stitch Zig-Zag (308)
    199R-3A-1 • 3 Stitch Zig-Zag

MACHINE SPECIFICATIONS:

  • Number of Needles:  1 (Single)
  • Feeding Mechanism:  Drop Feed
  • Workspace:  Standard Workspace
  • Standard or Full Function:  Standard Functions
  • Speed, Max (S.P.M.):  Zig-Zag 3000
    Straight 3200
  • Stitch Length:  5 s.p.i. (5mm)
  • Clearance Under Presser Foot: 15/64" (6mm)
  • Work Space:  10" (258mm)
  • Needle:  16 x 95
  • Bobbin:  Metal B75
    Prewound L
  • Bed Size: 7 x 18 7/8" (178mm x 480mm)
  • Needle Bar Stroke:  1 11/32" (34mm)
  • Hook:  B-70
  • Zig-Zag Stitch Width:  3/8" (9.5mm)

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • 1/3 lighter than clutch motors
  • With a flick of the switch you can reverse motor rotation
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
